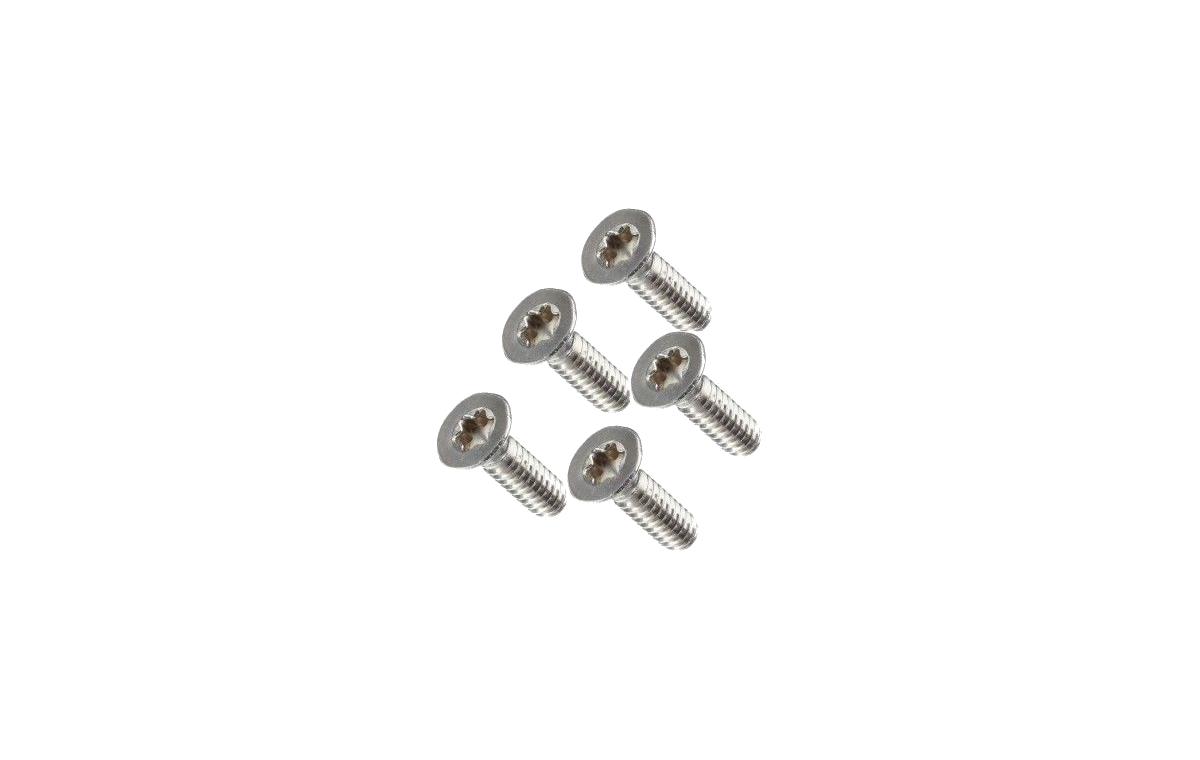

SABFOIL Wing Screws M6 & M8 Stainless Flathead

SABfoil Wing Hardware

Screw Requirements By Wing Size

Stainless flathead metric screws. M6 with Torx-30 drive, M8 with 5mm hex drive.

Stabilizer Wings

All Stabilizer Models - M6: 1 x 16mm, 1x 20mm  *stabilizer screw length may vary with shim use

Front Wings

W607 - M6: 2 x 25mm, 1 x 20mm

W633 - M6: 3 x 30mm

W639 - M6: 2 x 20mm, 1 x 25mm

W671 - M6: 2 x 25mm, 1 x 20mm

W679 - M6: 2 x 20mm, 1 x 25mm

W683 - M6: 2 x 20mm, 1 x 25mm

W699 - M8: 2 x 30mm, 1 x 35mm

W718 - M6: 3 x 25mm

W720 - M6: 3 x 25mm

W730 - M8: 2 x 30mm, 1 x 35mm

W740 - M6: 2 x 20mm, 1 x 25mm

W790 - M8: 2 x 30mm, 1 x 35mm

W799 - M8: 2 x 30mm, 1 x 35mm

W800 - M6: 2 x 20mm, 1 x 25mm

W873 - M6: 1 x 45mm, 2 x 50mm

W899 - M8: 2 x 30mm, 1 x 35mm

W900 - M6: 3 x 25mm

W940 - M8: 3 x 30mm

W945 - M8: 3 x 30mm

W950 - M8: 3 x 30mm

W999 - M8: 2 x 30mm, 1 x 35mm

W1000 - M6: 3 x 25mm

W1100 - M8: 2 x 30mm, 1 x 35mm

W1110 - M6: 3 x 25mm

W1250 - M8: 2 x 30mm, 1 x 35mm

Fuselage to mast connection

Sabfoil carbon windfoils - 2x M6 25mm Socket head cap fuselage to mast screw & washer

Sabfoil aluminum windfoils - 2x M8 40mm Socket head cap fuselage to mast screw & washer

M8 Front Wing on M6 Fuselage Adapter

All Sabfoil front wings - 3 x M8 to M6 Cone Adapter Washers (Sabfoil part MHW052)
